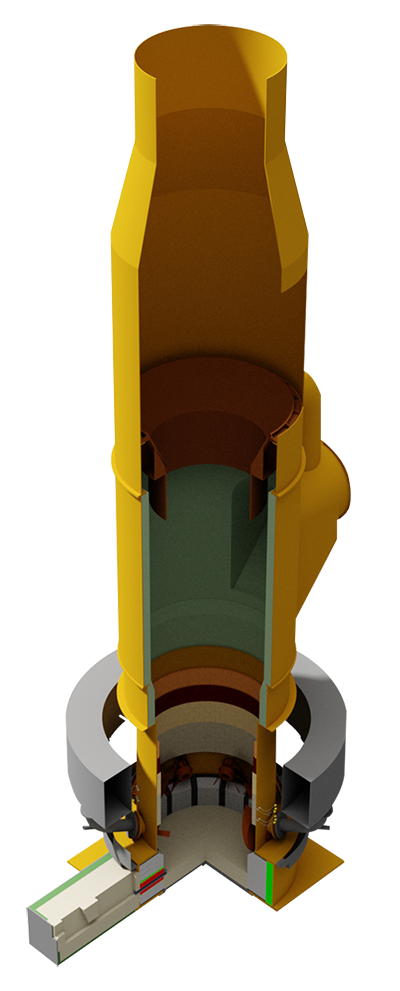

Cupola
CHARGE RING
| Metal-Rok® Shapes | High metallic fiber loaded precast shape |
UPPER STACK
| METAL-ROK® SHAPES | High metallix fiber loaded precast shape |
| DURALAST SIC | High conductivity brick with SiC. Reduces rate of refractory wear |
| GUNCAST® Product Series | Abrasion resistance gunning mixes |
MELTZONE
| DURAMELTZ® A & B | High conductivity brick. Reduces rate of refractory wear |
| DURAMELTZ® B | High conductivity brick. Reduces rate of refractory wear |
| DURALAST SIC | High conductivity brick with SiC. Reduces rate of refractory wear |
| 500 Series Gun Mixes | High SiC gun mixes |
| V-CAST® Series | Alumina silica carbide castable with low cement |
| STACKCRETE® Product Series | High alumina, shotcrete mixes |
WELL
| PRECAST SHAPES | High alumina with SiC+C |
| CW OMEGA PLASTIC | Resin bonded high alumina graphitic silicon carbide plastic |
| KARBSHIELD | Carbon bonding mix with oxidation inhibitor |
| STACKGUN 90 | Low cement, tabular alumina for excellent strength and corrosion resistance in high temp. environments |
| V-CAST® SERIES | Alumina silica carbide castable with low cement |
| RAM 135 | Fused alumina, graphitic ramming mix |
| DURAMELTZ® D Carbon brick | High conductivity brick. Reduces rate of refractory wear |
| RKB High Alumina Brick | 70% alumina brick |
TAPHOLE
| 300 Series Plastic | High alumnum graphite silicon carbide plastic |
| CW OMEGA PLASTIC | Resin bonded high alumina graphitic silicon carbide plastic |
| PRECAST SHAPES | High alumina with SiC+C |
| V-CAST® 400 Series & 700 Series | Alumina silica carbide castable with low cement |
| DURAMELTZ® A | High conductivity brick. Reduces rate of refractory wear |
SEPARATOR
| 400 Series Rams | Resin bonded high alumina graphitic silicon carbide ramming mix |
| RAM 165 | Resin bonded high alumina graphitic silicon carbide ramming mix |
| DURAMELTZ® Technology | Forced air cooler separator. reduces rate of refractory wear |
| V-Cast® 400 series and 700s series | Alumina silica carbide castable, with low cement |
| TEK-CAST Series | Single component, cement free alumina silica carbide castable |
BOTTOM
| LADLE RAM | High alumina ramming mix |
| HI-AL RAM G SERIES | High alumina, graphitic silicon carbide ramming mix |
| 400 Series Rams | Resin bonded high alumina graphitic silicon carbide ramming mix |
| 100 Series Rams | Fused alumina, graphitic ramming mix |
FOUNDRY
CUPOLA
Allied has ceramic refractory products and expertise to serve and optimize cupolas of any size, melting a wide range of foundry alloys. Our trusted product lines include V-CAST®, TEK-PAK, DURAMELTZ®, DURALAST, and STACKGUN.
